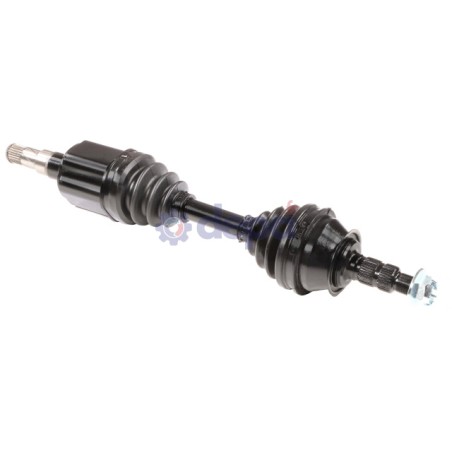

CHEVROLET CRUZE LEFT-SIDE

Name: CHEVROLET CRUZE LEFT-SIDE
Brand: Depa
SKU: 3710650
Price: 296.49 EUR
Availability: InStock

Ref : 3710650

Matching vehicles :

CRUZE

Family :TR

Height : 28 mm

Compressed length : 590 mm

ABS on the vehicle : Yes

Thread pitch type : 24X150

Nut type : Washer

JOINT HOMOCINETIQUE COTE BOITE

Seal seat diameter : 35 mm

Outer spline diameter : 27 mm

Housing diameter : 79.5 mm

Length of the gearbox output without seal seat : 55 mm

Number of external splines : 25

JOINT HOMOCINETIQUE COTE ROUE

Diamètre des cannelures extérieures : 32.5 mm

Diamètre du bol : 91 mm

Shoulder diameter : 58.5 mm

Nombre de cannelures extérieures : 30

Number of splines on inner race : 34

Observations : Threading length 31mm Ø24mm

Type and position (snap ring/circlip) : Centered snap ring

SOUFFLET COTE BOITE

Diameter (big) : 76.5 mm

Diameter (little) : 25.5 mm

Beads thickness : 9 mm

Length : 89 mm

Type of material : Neoprene

SOUFFLET COTE ROUE

Diamètre (grand) : 90 mm

Diamètre (petit) : 24 mm

Longueur : 90 mm

Number of grooves : 1

Type de matière : NÉOPRÈNE

TRIAXE COTE BOITE

Bearing roller diameter : 47.3 mm

Height : 22 mm

Number of splines : 34

JOINT HOMO Echange	COTE ROUE	JCHE01
JOINT HOMO Echange	COTE BOITE	CBMCHE06GT
KITS ETANCHEITE TR neuf	COTE ROUE	5026
KITS ETANCHEITE TR neuf	COTE BOITE	6194
FIXATION	COTE ROUE	EC012

Equivalence to manufacturer references

CHEVROLET : 13334718
