Catalog

Search by vehicle

Category :

Transmission

Return

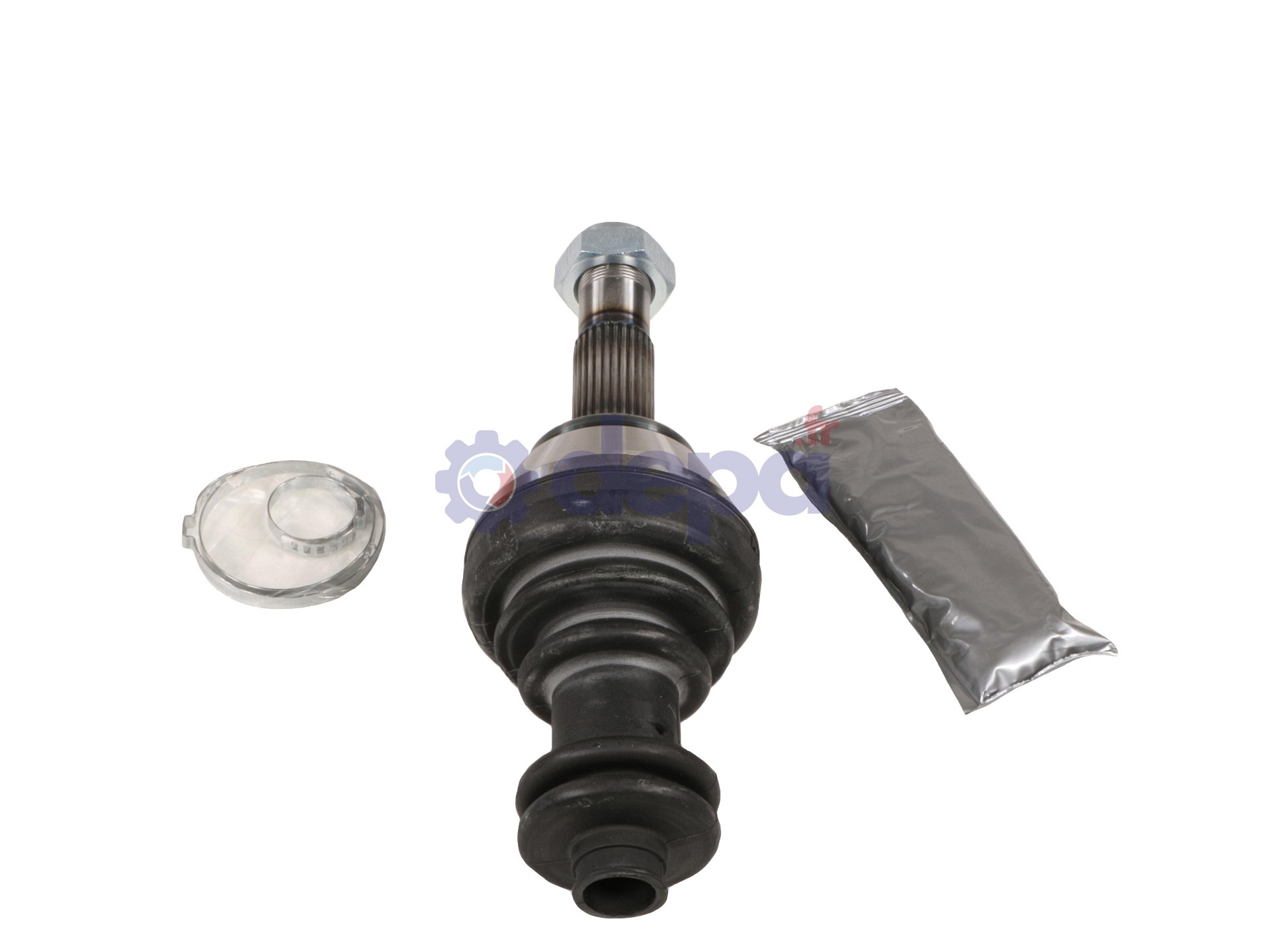

CITROEN / FIAT D

Name: CITROEN / FIAT D
Brand: Depa
SKU: 3066500
Price: 141.58 EUR
Availability: InStock

Ref : 3066500

Matching vehicles :

C25 - J5 - DUCATO

Family :TR

ABS on the vehicle : No

Length of the shaft (including bearing unit) : 387 mm

Compressed length : 1070 mm

COTE BOITE

Length of the shaft (including bearing unit) : 387 mm

Nombre de cannelures extérieures : 25

Diamètre des cannelures extérieures : 27 mm

Seal seat diameter : 28 mm

Length of the gearbox output without seal seat : 55 mm

Diamètre du bol : 101 mm

COTE ROUE

Shoulder diameter : 63 mm

Number of external splines : 28

Outer spline diameter : 30 mm

Observations : Please pay attention to the splines length

Housing diameter : 100 mm

Number of splines on inner race : 27

Type and position (snap ring/circlip) : Internal snap ring

Sealing kit	COTE ROUE	5058
	COTE ROUE	5058

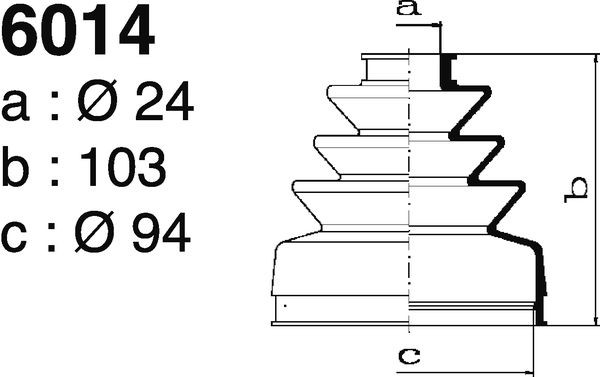

	COTE BOITE	6014
	COTE BOITE	6014
CV joint	COTE ROUE	JC65
	COTE ROUE	JC66
	COTE BOITE	PALCBMC65D
	COTE BOITE	PALCBMC65D
FIXATION	COTE ROUE	EC009
TRIAXE	COTE BOITE	TRIC41
TRIAXE	COTE BOITE	TRIC65
ROULEMENT	COTE BOITE	RLT017
ROULEMENT	COTE BOITE	RLT017

Equivalence to manufacturer references

CITROËN : 327362
CITROËN : 95555117
CITROËN : 327360
CITROËN : 32736R
CITROËN : 327478
CITROËN : 95606804
FIAT : 71720972
CITROËN : 3273C7
CITROËN : 9559529480
CITROËN : 9617303480
